Coordinate Measuring Machine (CMM) Dimensional Inspection

The increasing demand to manufacture parts to higher quality standards is clearly evident in the machining industry, as machine shops are required to machine parts to more stringent dimensional tolerances. Novacro has shown a commitment to meet these difficult standards by continually investing in state-of-the-art inspection equipment.

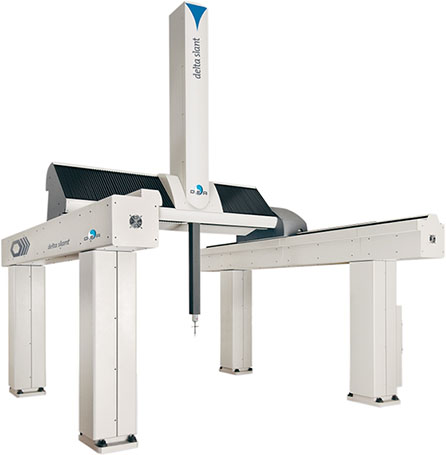

We boast one of the largest Coordinate Measuring Machines (CMM) in North American which is capable of measuring parts up to a tolerance of +/- 5 microns (.0002”) over a 3 metre x 3 metre x 6 metre (approx. 10 x 10 x 20 feet) range. Our ability to measure large parts machined to the most difficult dimensional requirements insures our customer's expectations are satisfied every time!

• Trimek Sky 60.30.30 CNC Gantry Type CMM: Measures a 3 metre x 3 metre x 6 metre (approx. 10 x 10 x 20 feet) volume to a tolerance of +/- 5 microns (.0002”)
• DEA Alpha Model 20.33.15 Gantry Type CMM: Measures a 3.3 metre x 2.0 metre x 1.5 metre (approx. 10.8 x 6.6 x 5.0 feet) volume to a tolerance of +/- 3 microns (.00013")
• Verniers (Digital and Mechanical) up to 60 inches (approx. 2.3 metres)
• Outside Micrometers (Digital and Mechanical) up to 60 inches (approx. 2.3 metres)
• Inside Micrometers up to 48 inches (approx. 1.2 metres)
• Depth Micrometers up to 12 inches (approx. 300 mm)

• Digital and Dial Bore Gauges up to 12.75 inches (approx. 325 mm)
• Full Range of Internal and External Thread Gauges for various standards (imperial, metric, British standard, Whitworth, etc.) up to 9.5 inches (approx. 240 mm)
• Full Sets of Calibrated Measuring Pins, Gauges Blocks and Radius Gauges
• Surface Roughness Profilometer
• Portable and Stationary Hardness Testers
• Optical Comparator
• Digitial Video Scope for deep hole viewing up to 6.5 feet (approx. 2 metres)
• Grade "A" Granite Surface Inspection Tables
